2/0 AWG welding cable is usually constructed using two main materials: copper and rubber or man-made insulation. The conductor, which is responsible for carrying the electrical current, is made from finely stranded copper. This allows for maximum flexibility and conductivity, keeping it easier for the welder to maneuver the cable during function. The insulation material, which is important for protecting the conductor and the user from electrical threats, is normally made from either neoprene or Ethylene Propylene Diene Monomer (EPDM) rubber.

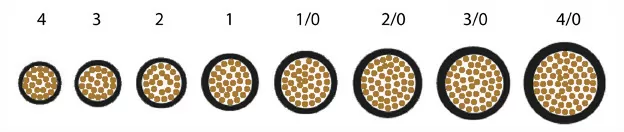

Top quality copper is the preferred choice for 2/0 AWG welding cable conductors because of its exceptional electrical conductivity and flexibility. The American Wire Gauge (AWG) system is used to determine the size of the copper strands, with lower AWG numbers showing thicker strands and higher electrical capacity. For welding applications, a cable with a higher strand count is preferable as it enables better flexibility and durability.
Neoprene and EPDM rubber are the most typically used insulation materials for welding cables. Both materials supply outstanding resistance to heat, oil, and abrasion, making them appropriate for the severe environments in which welding takes place. EPDM rubber is slightly more flexible and has a higher temperature resistance than neoprene, but both materials are suitable for most welding uses.
Due to above 2/0 AWG welding cable’s structure,the following are some benefits of welding cable:
2/0 AWG Welding cable is made from special substances that offer maximum strength and flexibility. It is highly resistant to abrasion, tears, and other types of wear and tear. This makes welding cable extremely durable in comparison to common electrical cables, which can break down quickly under normal use conditions.
In addition to durability, 2/0 AWG welding cables have exceptional flexibility, allowing them to be easily navigated in tight spaces or around barrier without breaking or fraying the material. This actions allows welders to work faster since they don’t have to waste time changing or adapting their resources or methods in order to take into account the resistance of the materials they are using.
Furthermore, Huadong welding cable typically has very high tensile strength that enables welders to safely work with thicker materials than other types of electrical cables without sacrificing performance or speed. This makes it ideal for applications where heavier weights are involved such as automotive repair and construction jobs.
Please feel free to contact us if you have any questions.
Send Email
Place of Origin： Henan, China
Brand Name： Huadong
Voltage： 250/440V ; 300/500V ; 450/750V
Number of cores： Number of cores：
Conductor Material： Copper
Insulation Material： PVC/Rubber
sectional area： 2/0 AWG
Provider： Directly factory
Warranty： 100%quanlified
MOQ： 100M
Price： Get within 12 hours
When picking the proper 2/0 AWG welding cable for your requirements, several aspects must be considered, consisting of amperage, cable length, flexibility, and natural conditions.
1.Amperage
The amperage rating of a 2/0 AWG welding cable determines the optimum electrical current it can safely carry. It is necessary to select a cable with an amperage rating that fulfills or exceeds the requirements of your welding machine to stop overheating and potential injury to the cable. The cable’s cross-sectional area, which is typically measured in AWG, is an essential element in determining its amperage capacity.
2.Cable Length
The length of the welding cable can affect its overall resistance, which may cause a voltage decrease and reduced welding performance. It is important to use the shortest possible cable length for your application while still enabling sufficient mobility during welding operations. In cases where longer cable lengths are inevitable, it may be necessary to use a larger AWG size to compensate for the increased resistance.
3.Flexibility
Flexibility is a vital factor in Huadong welding cable selection, as it directly affects the welder’s ease of movement and maneuverability. A more flexible cable will normally have a higher strand count and use finely stranded copper conductors. The insulation material, for example, EPDM or neoprene, also results in the cable’s overall flexibility.
4.Environmental Conditions
The environmental conditions in which the 2/0 AWG welding cable will be used should also be taken into consideration. Factors such as temperature, exposure to chemicals or oil, and the risk of abrasion can affect the cable’s performance and longevity. Make sure that the chosen cable is designed to withstand the particular conditions of your welding environment to avoid premature wear and failure.
Due to above 2/0 AWG welding cable’s Feature,which has many applications,as follow:

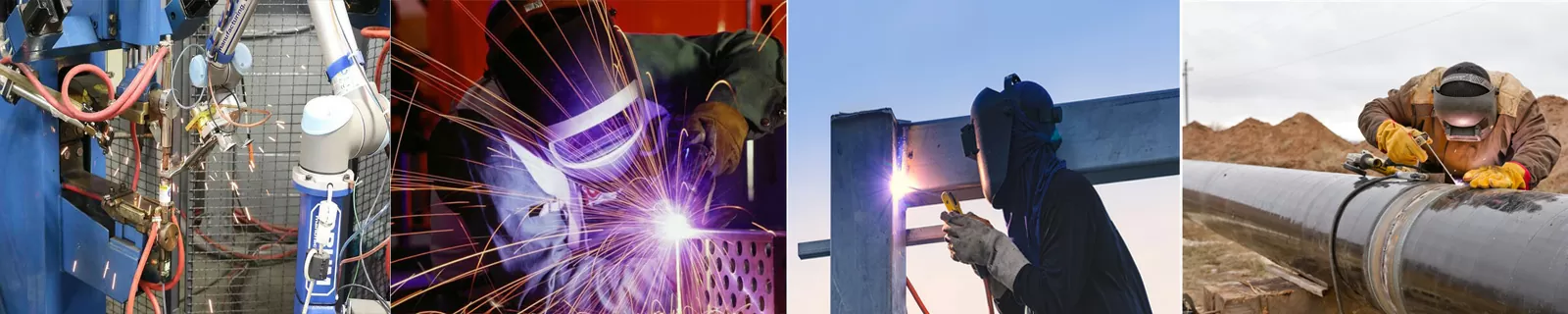

Welding machines are a primary application of 2/0 AWG welding cables. A welder, or a welding machine, is a mechanism used by welders to melt metal details. Depending on the scale, temperature rating, and expected amperage, there are industrial, automotive, and construction welding machines and structures.
Industrial welding machines are the most extensive ones found on large-scale industrial plants. The devices found here is very high-powered, and common 600V welding cables are not used. Cables are expected to be strong and very resistant to industrial influence.Automotive welding worries different sorts of vehicles. The equipment here is smaller, and cables should be flexible, as they are expected to maneuver in tight spaces.Construction welding machines are installed on building sites. Welding equipment here differs, and cables are expected to fit many different characteristics.
Do not coil the 2/0 AWG welding cables during welding. Coiling produces a large electromagnetic field around the cable hanger that can influence the welding machine’s interior parts and the arc quality over extended use.Keep the weld cables short. For example, it’s essential to avoid using a 30-meter length of cable for a 15-meter welding job. Rather, use fast connects if possible and save the additional cable for future needs.
Inspect the weld cables, output studs, and connections every morning. Replace or repair any faulty cables or connections, tighten any loose connections, and clean dirty connections with a wire brush. It only takes a few minutes to inspect at the start of a shift and is preferable to losing a day’s work to replace a burnt connection or buy new cables that weren’t checked.
Use the suitable 2/0 AWG welding cable size based on the distance of the weld circuit and the welding amperage. Undersized cables restrict the flow of current from the welding machine to the weld and make a resistor that produces heat in the cables or connection. For example, if the incorrect size is used, the machine will be over duty-cycled because a welder may try to run 32 volts at the output studs to make up for those hot cables that are only giving 20 volts at the weld. Ultimately, the welding machine may break down and cause unnecessary downtime.
