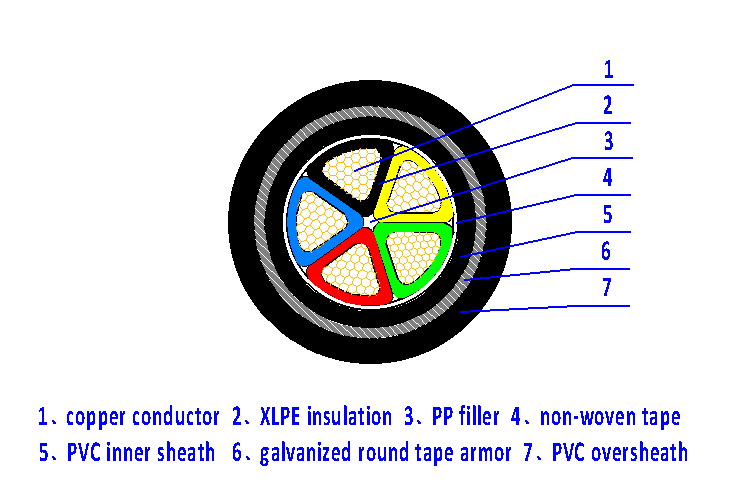

The interior structure of the 5-core 70 mm² STA armored cable includes several layers to avoid damage to the cable. The outer sheath protects against rodents, abrasion and twisting and is usually made of plastic. Armoring materials are mainly derived from Kevlar, steel and aluminum foil, and are designed to protect the armored cable from being stretched during installation.
The PVC version of STA cable, satisfies the requirements of both British Standard BS5467 and International Electrotechnical Commission standard IEC 60502.It is known as STA BS5467 Cable and it has a voltage rating of 600/1000V. STA cable can be described more typically as mains cable, armoured cable, power cable and brochure armoured cable. The name power cable, however, applies to a wide variety of cables including 6381Y, NYCY, NYY-J and 6491X Cable.
Due to above 5 core 70 mm² STA armoured cable’s structure,which has many advantages,as follow:
1. Environmental Resistance
The 5 core sta armoured cables offer durable protection against various environmental factors, including moisture, chemicals, and UV ray. This makes them suitable for installations in areas prone to extreme climate condition or corrosive compounds.
2. Longevity and Durability
Due to their sturdy construction, armoured cables have an extended life span compared to standard cables. They are less prone to harm, reducing the need for constant repairs or replacements. This aspect contributes to long-term cost savings.
3. Flexibility and Versatility
Sta armoured cables are available in various arrangements, enabling flexibility in installations. They could be used for both indoor and outdoor applications, adjusting to different power requirements and environments.
Please feel free to contact us if you have any questions.
Send Email
Place of Origin： Henan, China
Brand Name： HUADONG
Standard： BS IEC ASTM DIN
Voltage： 0.6/1kV
Number of cores： 5 Core
Conductor Material： Copper
Insulation Material： XLPE
Sectional area： 70mm²
Armouring material： Galvanized steel tape armoured
Operating temperature： 0°C – 90°C
Warranty： 100%quanlified
MOQ： 100M
Price： Get within 12 hours
5 core 70 mm² STA armoured cables are primarily used for distribution transmission or signal control. We can offer you with the best solution for your industry and environment.Because of the wide range of industrial uses and relatively economical wire armored cable prices, there is great demand for steel tape armored (STA) cables in the international market. However, the countries producing armored cables are mainly China, the United States, the UK, Japan, Germany, Russia, and other countries with relatively complete industrial abilities. Thus, suppliers of high-quality armored cables must focus on the country where the cable supplier is located.
Thereafter, you need to pay attention to the factory advantage of the wire armored (STA) cable manufacturer. You must choose the best company to buy a tape armored cable. Huadong Cable have twenty years of experience in production and international trade. Huadong Cable guarantees to supply each customer with high-quality steel wire armored cable, you can keep the specifications and amount of the armored cable you need.If you are not sure about the cable you need, you can Connect with Us. our designer will use the environment base on your 1. Use temperature. 3. Voltage. 4. Load capacity. 5. Your budget plan. 6. Other requirements Choose the cable that suits you best. Or you need to customize the cable of the unique model and size, or you can inquire us for your needs.

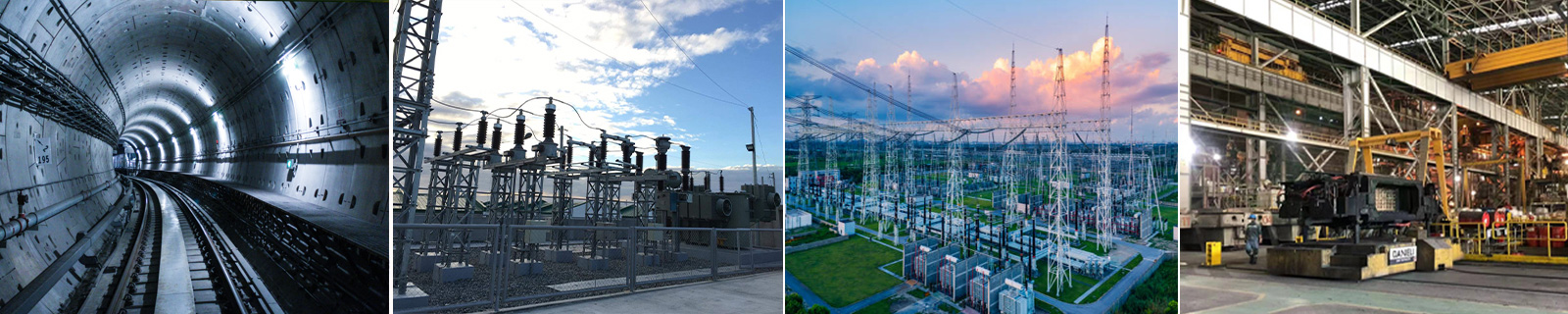

Due to above 5 core 70 mm² STA armoured cable’s Feature,which has many applications,as follow:
1. Power Distribution Networks
5 core 70 mm² STA armoured cable armoured cables play an important role in power distribution networks, both indoors and outdoors. They are regularly used in substations, transformer stations, and electrical panels to transmit electricity over long distances. Armoured cables provide protection against accidental damages, which is vital for sustaining uninterrupted power supply to residential, commercial, and industrial areas.
2. Outdoor Lighting
In outdoor lighting systems, sta armoured cables offer extraordinary durability and climate resistance. Whether it’s for garden lighting, pathway illumination, or security lighting, armoured cables ensure reliable power supply while protecting against environmental factors like rainfall, UV radiation, and temperature fluctuations.
3. Harmful Locations
Certain environments, including chemical plants, oil refineries, and mines, present hazardous conditions because of the presence of flammable substances or explosive environments. Armoured cables with specific certifications, such as flame-retardant or explosion-proof properties, are used to mitigate the risk of electrical incidents in these settings. These cables are designed to contain any potential sparks or heat generated, ensuring the safety of workers and property.
When it comes to precisely what circumstances 5 core 70 mm² STA armoured cable should be used in, typically if the cable itself is going to be exposed to the weather and needs to be fully secured and water proof e.g. used externally then armoured cable should certainly be used.In summary if a cable is to be operated externally, despite whether it’s buried or surface mounted or is going to be used in industrial locations around heavy machinery then armoured cable should always be used.
Sta armor-clad cables supply appropriate protection and sturdiness in the absence of conduits. In many cases, people are forced to use conduits in areas prone to exterior risks like corrosion and cable abrasion. Thus, it is correct to say that an armored cable is suitable for use in hazard-prone areas.A standard electrical cable is probably to incur irreversible damage in areas exposed to moisture. A metal coated wire is suitable for such an environment because it can endure moisture exposure. Generally, it is advisable to use armor-clad cables in dangerous locations, including beneath stairwells, barns, and basements, to name a few.
Please feel free to contact us if you have any questions.
