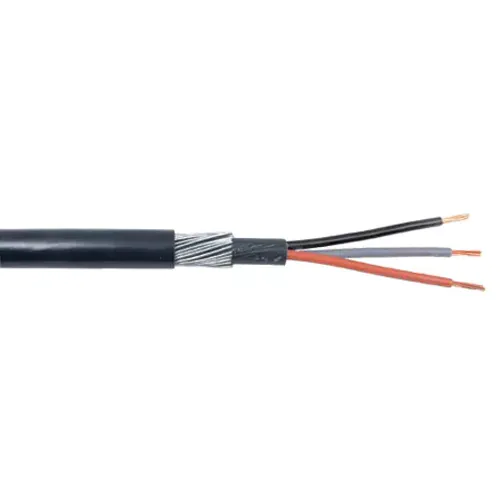

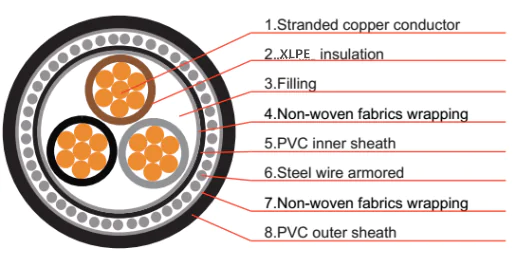

3 core 95 mm² SWA armoured cable are manufactured with several different layers and elements. The main components of SWA cable is the:
Conductor. The conductor is usually several cores of plain stranded copper.
Insulation. The Insulation is used to protect the conductors from any water damage, especially if the cable is buried underground. It also offers a barricade between the conductors and the other metal components, including the armour.
Bedding. The PVC bedding serves as a buffer between the inner live component of the cable and the outer components.
Steel Wire Armour. The Steel Wire Armour itself is placed over the bedding, providing the cable protection from stress. Sometimes, the armour can be used as the earth cable.
Cable sheathing. The cable sheath is used to protect the inner components of the cable and supplies more protection from mechanical harm and stress.
Due to the above structure, 3 core 95 mm² SWA armoured cable has many advantages in use:
1. Protects against physical damage.Armoured cable is tough, which makes it resistant to physical damage. It can endure hits, cuts, and stress without impacting the wires inside.
2. Resistant to extreme weather.It’s also created to withstand harsh climate condition. Rain, snow, or extreme temperatures, it can deal with it all without losing its effectiveness.
3. Prevents electrical interference.Electrical interference can disrupt the flow of existing, but this cable is designed to avoid that. It makes sure a stable flow of electricity.
4. Boosts safety from fires.Safety is another vital feature. The cable’s design helps to stop fires from distribution, keeping buildings and people safer.
5. Supports heavy load capacity.Lastly, due to its robust construction, it can support heavy loads. It’s ideal for high-demand applications where regular cables might fail.
Please feel free to contact us if you have any questions.
Send Email
Place of Origin： Henan, China
Brand Name： Huadong
Standard： BS IEC ASTM DIN
Voltage： 0.6/1kV
Number of cores： 3 Core
Conductor Material： Copper
Insulation Material： XLPE
sectional area： 95mm²
Armouring material： Galvanized steel wire armoured
Operating temperature： 0°C – 90°C
Warranty： 100%quanlified
MOQ： 100M
Price： Get within 12 hours
The purpose of 3 core 95 mm² SWA armoured cable is to enhance the cable’s mechanical strength and improve the anti-erosion ability. The commonly used armor materials are steel tape, steel wire, and aluminum tape. The steel tape and steel wire armor layer have high permeability and an excellent magnetic shielding impact, resisting low-frequency obstruction.It is a special cable designed for the area which is prone to mechanical damage and erosion.
3 core Steel wire armored cable is made of difficult steel wire conductor placed with an insulation layer. Steel wire armoured cable is generally used in engineering, metallurgy, machinery manufacturing, construction and more. The mechanical protection layer of the armoured cable can be added to any structure of the cable to increase the mechanical strength of the cable and improve the anti-erosion chance, which appropriates for the bad environment, and the steel wire to protect the conductor and insulation.
Due to the feature of 3 core 95 mm² SWA armoured cable, which have many applications as follow:
1. Underground Installations
Armoured cables are typically used for underground installations because of their capacity to endure the rough conditions found in soil. They offer excellent protection against wetness, chemicals, and physical damages, making them ideal for applications including underground power distribution, street lighting, and residential wiring.
2. Industrial and Construction Sites
Industrial and construction environments frequently involve heavy machinery, equipment, and rigorous operations. 3 core armoured cables are extensively used in these settings to make sure the safe and uninterrupted supply of electricity. They can enduring high mechanical tension, making them ideal for power distribution in factories, warehouses, construction sites, and other demanding industrial applications.
3. Power Distribution Networks
3 core Armoured cables play an important role in power distribution networks, both indoors and outdoors. They are regularly used in substations, transformer stations, and electrical panels to transmit electricity over long distances. Armoured cables provide protection against accidental damages, which is vital for sustaining uninterrupted power supply to residential, commercial, and industrial areas.
3 core 95 mm² SWA armoured cable supplys appropriate protection and sturdiness in the absence of conduits. In many cases, people are forced to use conduits in areas prone to exterior risks like corrosion and cable abrasion. Thus, it is correct to say that an armored cable is suitable for use in hazard-prone areas.
A standard electrical cable is probably to incur irreversible damage in areas exposed to moisture. A metal coated wire is suitable for such an environment because it can endure moisture exposure. Generally, it is advisable to use armor-clad cables in dangerous locations, including beneath stairwells, barns, and basements, to name a few.
A routine visual inspection can also help spot potential issues early. Always check for signs of damage or exposed wires before working with armoured cables. Damaged cables should be repaired or replaced immediately.
